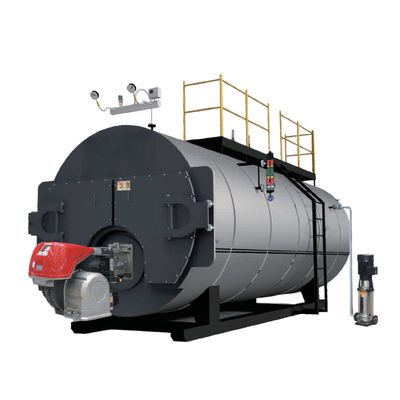

1 Ton 2 Ton 3 Ton 4 Ton Fuel Oil Diesel Natural Gas Boiler Combustion Gas Industrial Steam Boiler

Certification
China Zhengzhou Sendian Machinery Equipment Co., LTD certification
China Zhengzhou Sendian Machinery Equipment Co., LTD certification
I'm Online Chat Now

1 Ton 2 Ton 3 Ton 4 Ton Fuel Oil Diesel Natural Gas Boiler Combustion Gas Industrial Steam Boiler

1 Ton 2 Ton 3 Ton 4 Ton Fuel Oil Diesel Natural Gas Boiler Combustion Gas Industrial Steam Boiler
1 Ton 2 Ton 3 Ton 4 Ton Fuel Oil Diesel Natural Gas Boiler Combustion Gas Industrial Steam Boiler 1 Ton 2 Ton 3 Ton 4 Ton Fuel Oil Diesel Natural Gas Boiler Combustion Gas Industrial Steam Boiler 1 Ton 2 Ton 3 Ton 4 Ton Fuel Oil Diesel Natural Gas Boiler Combustion Gas Industrial Steam Boiler

Large Image :  1 Ton 2 Ton 3 Ton 4 Ton Fuel Oil Diesel Natural Gas Boiler Combustion Gas Industrial Steam Boiler

Product Details:
Place of Origin: China
Brand Name: SenDian
Certification: CE, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: $20000.00
Delivery Time: 7-15 work days
Payment Terms: MoneyGram, Western Union, T/T, D/P, D/A, L/C
Supply Ability: 20 Sets Week

1 Ton 2 Ton 3 Ton 4 Ton Fuel Oil Diesel Natural Gas Boiler Combustion Gas Industrial Steam Boiler

Description
Pressure: Low Pressure Fuel: Natural Gas, Lpg,lng, Cng,diesel, Heavy Oil,light Oil
Steam Production: Max. 20t/h Core Components: Boiler Main Body
Usage: Industrial Structure: Fire Tube
Highlight:

Industrial Steam Boiler

,

1 Ton Steam Boiler

,

4 Ton Steam Boiler

1 Ton 2 Ton 3 Ton 4 Ton Steam Boiler Fuel Oil Diesel Natural Gas Boiler Combustion Gas Industrial Steam Boiler



Product Description:



1.The furnace gallbladder space, the effective radiation heating surface is large, to ensure that the boiler is energy
efficient, greatly extending the life of the boiler.
2.Wave-shaped furnace gallbladder, threaded smoke pipe, effectively inhibit the generation of Nox, coupled with excellent and
reliable imported burners, so that the fuel is completely combusted, in line with the strict environmental requirements.
3.Touch screen control and dynamic graphic work operation status display. Users only need to set the working time parameters,
select continuous, the boiler can automatically run according to the set program.
4.Automatic operation, automatic water replenishment, graphic display. Equipped with multiple chain protection, plus double
independent water level control alarm, triple pressure protection and alarm display, record, to ensure the safe operation of the
boiler in a variety of operating conditions.
5.With advanced and unique design to ensure that the boiler is safe, reliable, economical and efficient. Before and after the
smoke box are used to move the smoke box door, the furnace body opened manhole, head hole, hand hole, simplify the cleaning work,
so that the repair, maintenance is extremely convenient.
6.The whole machine is quick-assembled from the factory, with beautiful appearance and easy installation.



Boiler Type
WNS0.5
WNS1
WNS1.5
WNS2
WNS3
WNS4
Rated steam capacity (T/H)
0.5
1
1.5
2
3
4
Rated steam capacity (Mpa)
1.25/1.6
Rated steam temperature (℃)
194/204
Thermal efficiency (%)
> 98
Nox emission (mg/m3)
120/80/30
Exhaust gas temperature (℃)
<60
Fuel Type
Light diesel/heavy oil/natural gas/liquefied gas/city gas
Fuel consumption
Diesel fuel
(kg/h)
32
65
97
130
192
258
Natural gas (Nm3/h)
37.5
74.3
110
148
221
295
Product weight (t)
3.6
4.8
4.95
7.3
9
11.9
Boiler Type
WNS6
WNS8
WNS10
WNS15
WNS20
Rated steam capacity (T/H)
6
8
10
15
20
Rated steam capacity (Mpa)
1.25/1.6
Rated steam temperature (℃)
194/204
Thermal efficiency (%)
> 98
Nox emission (mg/m3)
120/80/30
Exhaust gas temperature (℃)
<60
Fuel Type
Light diesel/heavy oil/natural gas/liquefied gas/city gas
Fuel consumption
Diesel fuel
(kg/h)
382
460
635
958
1273
Natural gas (Nm3/h)
445
594
740
1112
1485
Product weight (t)
14.6
17.4
20.4
28.8
33.9



1 Ton 2 Ton 3 Ton 4 Ton Fuel Oil Diesel Natural Gas Boiler Combustion Gas Industrial Steam Boiler 0
