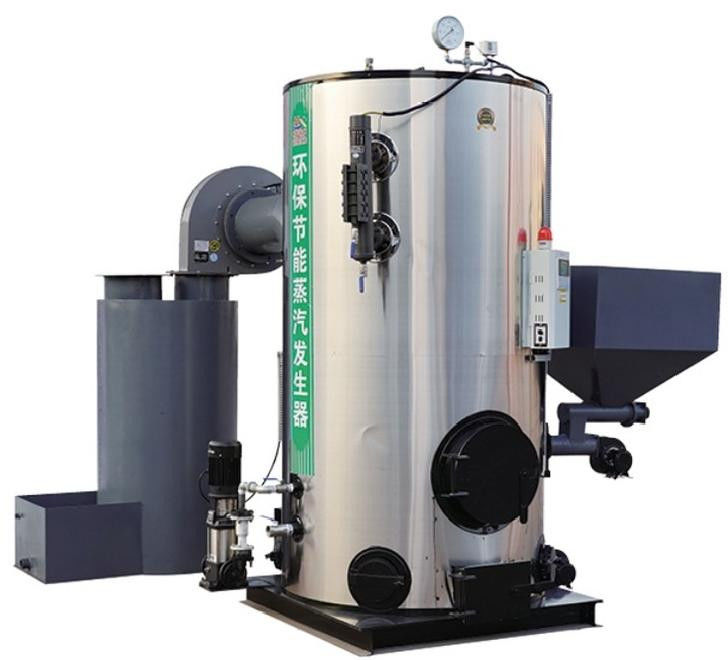

ZFQ Vertical Biomass Steam Generator
Products Description:
This product is highly automated,personalized design,and all programs are concentrated on a button.It is an extraordinary fool-type fuzzy control,which is convenient for every operator.
Automatic intelligent electronic control system with LCD touch display:
The operating system is under automatic control,and all operating states can be clearly seen on the LCD screen.You can observe the working status,water level status,high and low steam pressure status,water pump operation status,fault alarm status,eto.in the display screen,so that you can grasp the equipment operation status at any time and use it more safely.
High-quality components:
All pipelines and instruments are connected with seamless steel pipes or pressure-resistant copper pipes,and the electrical appliances are well-known in China,which are safe and reliable in use and luxurious in configuration.
Multiple interlocking safety protection function:
The product is equipped with overpressure protection such as pressure gauge safety valve and pressure controller to prevent explosion accidents caused by excessive pressure of the equipment;At the same time,it has limit low water level protection,which wll automatically stop working when the water supply is stopped,preventing the electric heating element from being damaged or even bumt out due to dry burning.The leakage protector ensures the safety of operators and equipment.
Easy to nstall and use:
The products have passed stict commissioning before leaving the factory.Users only need to connect the power supply and water source,and press the start button to enter the automatic operation state of the boler,without complicated installation.
Scientifio design,beautiful appearance:
The new design style is adopted,the intemal design structure is reasonable,and the maintenance is extremely convenient.The shell adopts CNC cutting and CNC folding one-time forming prooess,with fine workmanship;The shel surface is made of stainless steel pate,which is durable and beautiful.
|
|
ZFQ0.2-
0.09-SCI
|
ZFQ0.3-
0.09-SC I
|
ZFQ0.5-
0.09-SC I
|
ZFQ0.7-
0.09-SC I
|
ZFQ1.0-
0.09-SC I
|
ZFQ1.5-
0.09-SC I
|
ZFQ2.0-
0.09-SC I
|
| (MPa) Rated steam pressure |
0.09 |
0.09 |
0.09 |
0.09 |
0.09 |
0.09 |
0.09 |
|
(℃)
Rated steam temperature
|
118 |
118 |
118 |
118 |
118 |
118 |
118 |
|
(℃)
Feedwater temperature
|
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
( % )
thermal eficiency
|
83 |
83 |
83 |
83 |
83 |
83 |
83 |
|
(Kg/h)
Particulate fuel consumption
|
39 |
58.5 |
97.5 |
136.5 |
195 |
292.5 |
390 |
|
(KW)
Power consumption
|
3 |
3 |
4 |
5 |
5 |
6 |
6 |
|
(V)
supply voltage
|
220 |
220 |
220 |
380 |
380 |
380 |
380 |
|
(T)
Transport reference weight
|
1.1 |
1.3 |
1.6 |
2 |
2.5 |
3.5 |
5.5 |
| (MM) |
long |
1350 |
1600 |
1800 |
1900 |
2100 |
2500 |
3000 |
| |
wide |
1250 |
1500 |
1700 |
1800 |
2000 |
2300 |
2500 |
| |
high |
2000 |
2500 |
2600 |
2800 |
2800 |
2800 |
2850 |
|
Allthe above values are calculated based on the low calorific value of biomass particles 4000Kcal/Kg.
|
|
The parameters are changed due to technical inovation,and the factory parameters are subject to the actual drawings!
|
