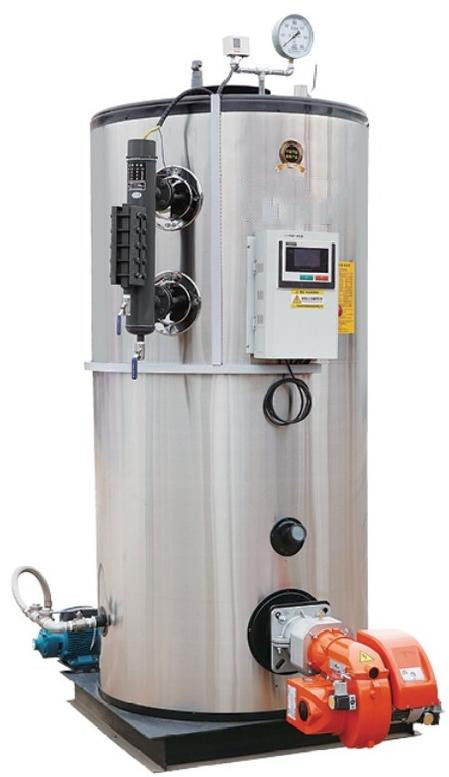

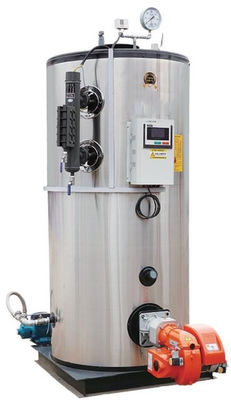

LHS Vertical Fuel Gas Steam Generator

Products Description:



The furnace body is a vertical fire tube structure. The large furnace design makes the fuel burn more fully, and the flue gas is inserted in the boiler smoke pipe to slow down the flow of the flue gas, which can reduce the exhaust gas temperature well. The boiler has the characteristics of fast heating, low fuel consumption, and high steam quality. The large radiation heating surface and convection heating surface make the boiler thermal efficiency have excellent performance.

Available Fuel: Natural gas, LPG, CNG, LNG, hydrogen, biogas, city gas, diesel oil, heavy oil, dual fuel, etc.
Rated Steam Capacity: 100kg-1000kg/h
Rated Steam Pressure: 0.4Mpa(4bar), 0.7Mpa(7bar), 1.0Mpa(10bar)

		LHS0.1-0.09-YQ	LHS0.2-0.09-YQ	LHS0.3-0.09-YQ	LHS0.5-0.09-YQ	LHS0.7-0.09-YQ	LHS1.0-0.09-YQ
(MPa) Rated steam pressure		0.09	0.09	0.09	0.09	0.09	0.09
Rated steam temperature(℃)		118	118	118	118	118	118
(℃) Feedwater temperature		20	20	20	20	20	20
( % )thermal eficiency		93	93	93	93	93	93
	(m³/h) natural gas	9.3	18.6	27.9	46.4	65.0	92.9
	(m³/h) liquid gas	7.4	14.9	22.3	37.1	52.0	74.3
	(m³h) City gas	19.5	39.0	58.5	97.5	136.5	195.0
	(Kg/h) Light diesel	7.6	15.3	22.9	38.2	53.5	76.5
	(Kg/h) heavy oil	7.8	15.6	23.4	39.0	54.6	78.0
(KPa) Air supply pressure		2-5	2-5	3-5	4-6	5-10	5-12
(KW) Power consumption		0.75	0.9	0.96	1.2	1.5	2.2
(V) supply voltage		220	220	220	220	380	380
(T) Transport reference weight		0.59	0.68	0.83	1.07	1.45	1.78
(MM)	long	800	900	1000	1100	1300	1500
	wide	750	850	950	1050	1250	1400
	high	1900	2200	2250	2400	2600	2700
All the above values are calculated based on the low level heating value of natural gas 8,400Kca/Nm³,low level heating value of liquefied gas 10,500Kca/Nm³,low level heating value of city gas 4,000kcal/Nm³,low level heating value of light oi 10,200Kcal/Kg,and low level heating value of heavy oil 10,000Kcal/Kg.
The parameters are changed due to technical inovation,and the factory parameters are subject to the actual drawings!
