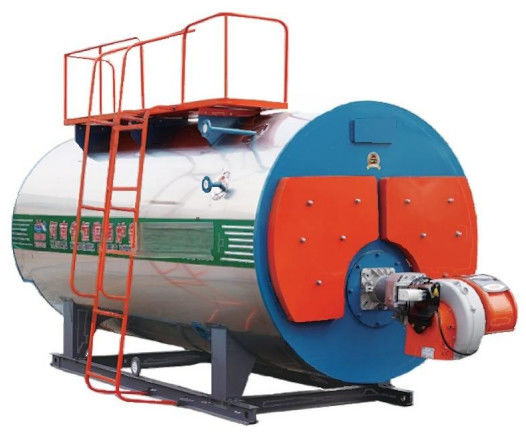

WNS horizontal fuel gas steam boiler

Products Description:

1.The unique structure design of large combustion chamber and three retum wet back structure can maintain the powerful radiation heat transfer capability while realzing low-temperature combustion,improve the thermal efficlency of the boler,reduce the emission of NO,and achieve high efficiency and environmental protection.

2.The heating area of the boller is deslgned and configured according to high standards to fully absorb the effective heat.The exhaust gas temperature is low,the heat loss is small,and the output is sufficient and the efficiency is high.

3.The use of threaded smoke pipe ncreases the heat transfer effect and improves the thermal efficiency of the boiler.

4.The front and rear smoke boxes of the boiler adopt mulli-stage sealing mode,which fundamentally eliminates smoke leakage.

5It has arge steam space and good steam quality.

6.Water level,steam pressure,smoke exhaust temperature oontrol and display,and set fault alarm function,safe and reliable.

7.The boiler is equipped with movable front and rear smoke box covers to facilitate boiler maintenance.

8.Rear view device design-easy to observe the flame combustion in the furnaoe.Multiple protection measures -set with overtemperature,overpressure,water shortage,full water,leak detoction and flameout protection,safe and reliable operation.

Rear view device design-it is convenient to observe the flame combustion in the furnace.



		WNS0.5- 1.0-YQ	WNS1.0- 1.25-YQ	WNS2.0- 1.25-YQ	WNS3.0- 1.25-YQ	WNS4.0- 1.25-YQ	WNS6.0- 1.25-YQ	WNS8.0- 1.25-YQ	WNS10- 1.25-YQ
(MPa) Rated steam pressure		1	1.25	1.25	1.25	1.25	1.25	1.25	1.25
Rated steam temperature(℃)		180	194	194	194	194	194	194	194
Feedwater temperature(℃)		20	20	20	20	20	20	20	20
thermal eficiency( % )		≥93	≥93	≥93	≥93	≥93	≥93	≥93	≥93
Body heating area(m²)		17	27	50	88	117	171	204	258
	natural gas(m³/h)	39	79	157	236	314	471	629	786
	liquid gas(m³/h)	31	63	126	189	251	377	503	629
	City gas(m³/h)	83	165	330	495	660	990	1320	1650
	Light diesel(Kg/h)	32	65	129	194	259	388	518	647
	heavy oil(Kg/h)	33	66	132	198	264	396	528	660
Transport reference weight(T)		2.5	5.4	8.06	10	12.43	15.5	22	26.55
	long	3300	4180	4300	5170	5600	6300	6580	7300
	wide	1500	1720	1900	2000	2150	2250	2620	2860
	high	1700	2050	2400	2500	2640	2700	3120	3400
All he above values are calculated based on the low level heating value of natural gas 8,400Kcal/Nm²,low level heating value of liouefied gas 10,500Kcal/Nm²,low level heating value of city gas 4,000kcal/Nm²,low level heating value of light oil 10,200Kcal/Kg,and low level heating value of heavy oil 10,000Kcal/Kg
The parameters are changed due to technical inovation,and the factory parameters are subject to the actual drawings!
