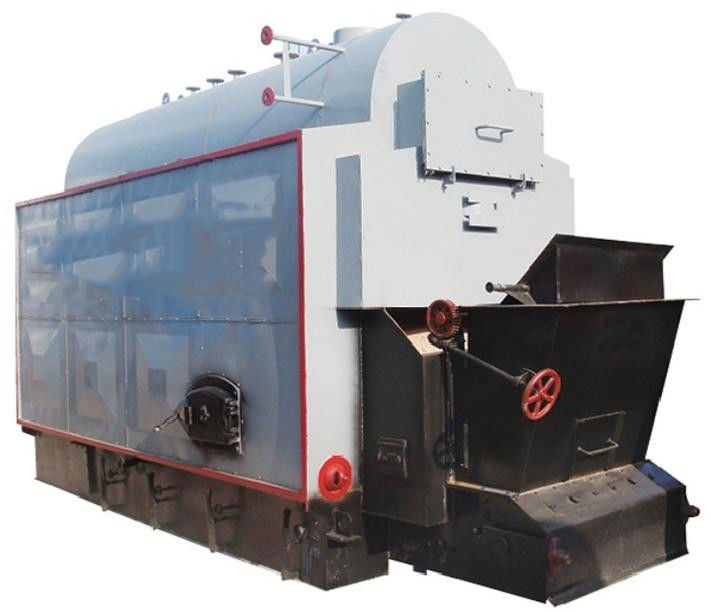

DZL horizontal chain steam boiler
Products Description:
The new DZL series boiler is a single drum longitudinal water fire tube shell boiler,and the combustion equipment is a chain grate.The water walls on the left and right sides of the fumace are radiating heating surfaces,the two wings of the fumace are convection heating surfaces, the spiral smoke pipe convection heating surfaces are arranged in the drum,the front and rear arches adopt a new process of integral casting and tamping of heat-resistant ooncrete,and the outside of the boller host is a three-dmensional protective plate shell
This series of boilers adopts the latest scientific research achievements,such as arched tube sheet,threaded smoke tube,splayed tube,eto.,to solve the problems of shell type boiler tube sheet cracks,drum bulge at the lower part of the drum,water wall tube burst,low thermal efficienoy,insufficient output,poor adaptabilty of biomass fuel,eto.
| |
DZL1.0-1.25-
SCl
|
DZL2.0-1.25-
SCI
|
DZL3.0-1.25-
SCI
|
DZL4.0-1.25-
SCI
|
DZL6.0-1.25-
SCI
|
DZL8.0-1.25-
SCI
|
| (MPa) Rated steam pressure |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
|
(℃)
Rated steam temperature
|
194 |
194 |
194 |
194 |
194 |
194 |
|
(℃)
Feedwater temperature
|
20 |
20 |
20 |
20 |
20 |
20 |
|
(%)
thermal efficiency
|
≥83
|
≥83
|
≥83
|
≥83
|
≥83
|
≥83
|
|
(Kg/h)
Particulate fue consumption
|
150 |
300 |
450 |
600 |
900 |
1200 |
|
(T)
Transport reference weight
|
11.8 |
21 |
24 |
29 |
35.5 |
46 |
| MM) |
long |
4735 |
5400 |
6422 |
6178 |
7619 |
8100 |
| |
wide |
1960 |
2400 |
2400 |
2950 |
3000 |
3100 |
| |
high |
2893 |
3480 |
3300 |
3350 |
3670 |
3800 |
|
Allthe above values are calculated based on the low calorific value of biomass particles 4000Kcal/Kg.
|
|
The parameters are changed due to technical innovation,and the factory parameters are subject to the actual drawings!
|
